一緒に来ることは始めです;一緒に保存は進歩です;協力は成功です。

|
| Place of Origin: | Dongguan,China |
| ブランド名: | HYD |
| 証明: | CE / IS09001 |
| モデル番号: | HYD-40T-3A |
| 最小注文数量: | 1セット |
|---|---|
| 価格: | USD 27500~28500/sets |
| パッケージの詳細: | パライウッドケース |
| 受渡し時間: | 20日 |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| 供給の能力: | L/C,D/A,D/P,T/T,ウェスタンユニオン,マネーグラム |
| 軸: | 3本の斧 | 任意用具: | 紡績工/サーボはさみ |
|---|---|---|---|
| 機械絵画: | 要求された色はある場合もある | 港: | シェンゼン,中国 |
| 配達日: | 15日 | 線直径: | 1.0~4.0mm |
| outside Diameter: | Max 60mm | ワイヤー送り速度: | 110mm |
| 電源: | 380V+10%V50Hz | ||
| ハイライト: | CNCのばねのウィンド マシーン,カム・CNC・スプリング・ワイリング・マシン |
||

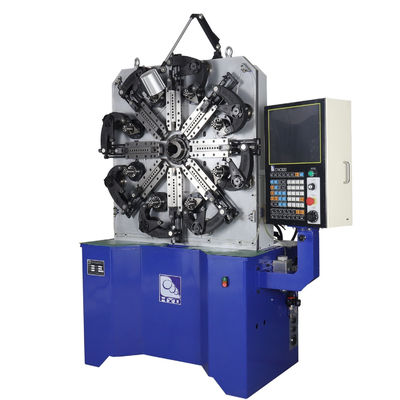

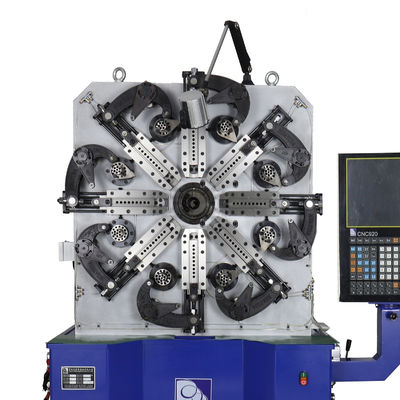

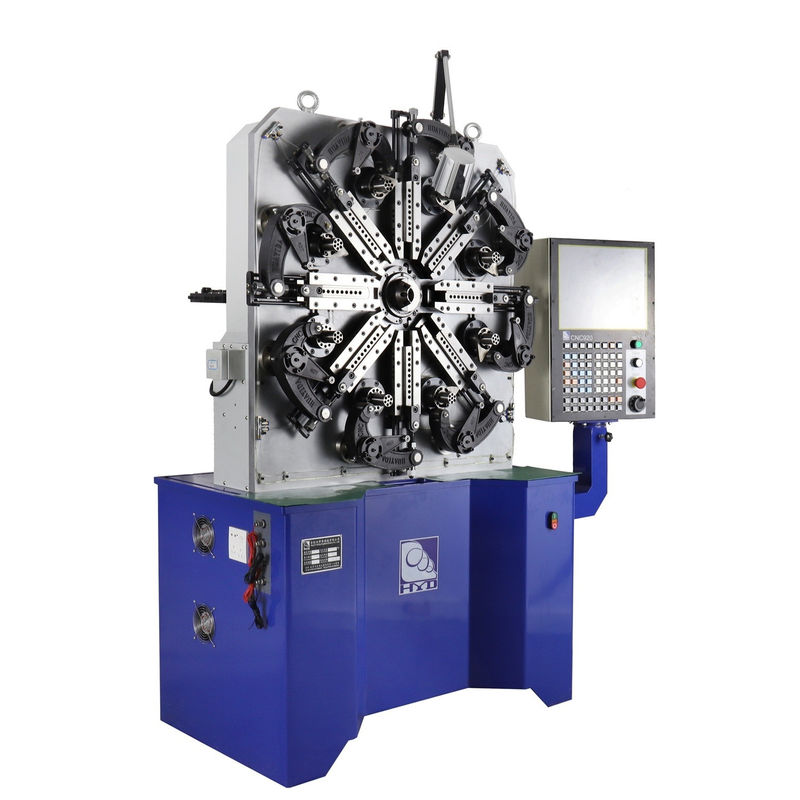

CNC Spring Making Machine Cam Spring Winding Machine With Sanyo Servo Motor
Suitable for processing various precision compression springs, extension springs, single and double torsion springs, tower springs, flat wire springs, special-shaped springs and complex wire forming products, widely used in furniture, electrical appliances, beds/seat cushions, lighting, electric vehicles , automobiles, kitchen utensils, machinery and molds and other fields.
| Diameter | 1.0~4.0mm |
| Max OD | 60mm |
| Wire Feeding speed | 0~110m/min |
| Transmission speed cam | 0~60RPM |
| Wire feed servo motor | 5.5KW |
| Can servo motor | 5.5KW |
| Rotary servo motors | 1.0KW |
| Machine size | 1600*1300*1900mm |
| Machine Weight | 1800kg |
Feature:
1. Versatile spring former applicable for wire forming, torsion and extension springs.
2. 8 forming slides controlled by cam axis.
3. Wire Rotation 360 degree.
4. Quick release mechanism for wire change over.
5. Varieties of configurations such as lateral slide, servo cutter, dual spinner, rotary gripper, hook station and etc.
Samples:
After-sale service
---Free installation & training service in HYD company.
---Always provide customers efficient on-line response.
Can you provide technical support?
---HYD provide free technical support,installation and training of machine.
How do you support when machine goes wrong.
---Talk with HYD specialist online by telephone, Skype, WhatsApp etc and give high-efficient solution for the incorrect operation or change the consumable parts.
---HYD specialist will teach you how to change the parts during the training time
Samples:
