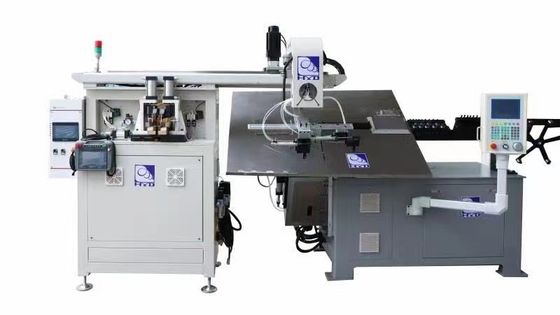

Automatic 2D Wire Bending Machine with Dedicated CNC Computer 8.6kW Power and Max Wire Feed 10000.0mm

商品の詳細:

起源の場所:	中国広州
ブランド名:	HYD

お支払配送条件:

最小注文数量:	1

詳細製品概要

重さ:	900 kg	電圧:	380 v
力:	8.6 kW	ワイヤーサイズ:	2.5-6.5mm TS≦500N
サーボモーター:	4本か5本の斧	制御システム:	専用のCNCコンピューター
最高ワイヤー供給:	10000.0mm	最小ワイヤーフィード:	0.01mm
最高ワイヤー速度:	>60m/分	ワイヤフード長さ:	無制限
空気圧:	5-6 KG/CM²	プローブカウント:	2
機械のサイズ:	長さ2900幅1130高さ1650ミリメートル	モーターブランド:	三洋電機/イノヴァンス/松下電器
電源:	3phase、380V
ハイライト:	Max Wire Feed 10000.0mm 2D Wire Bending Machine , 8.6kW Power Wire Forming Machine , Dedicated CNC Computer CNC Wire Bender

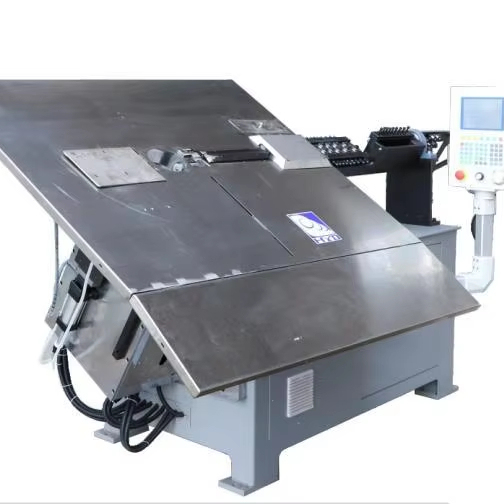

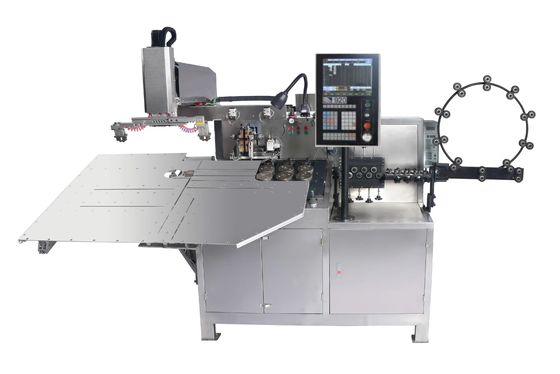

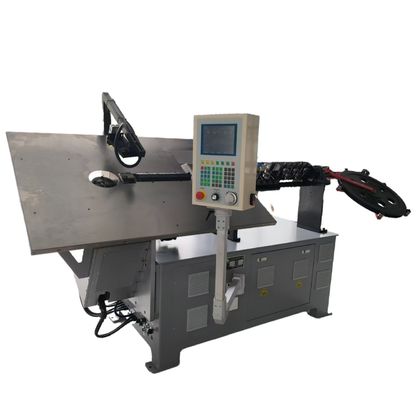

2D Bending Machine Automation Equipment

High-precision 2D wire bending machine for industrial wire forming applications with CNC computer control system.

Technical Specifications

Model	HYD-WR4A5A-65	HYD-WR4A5A-80	HYD-WR4A/5A-100
Wire Size	φ2.5-φ6.5mm TS≤500N	φ2.5-φ8.0mm TS≤500N	φ3.0-φ10.0mm TS≤500N
Servo Motors	4 or 5 axes	4 or 5 axes	4 or 5 axes
Control System	Dedicated CNC Computer	Dedicated CNC Computer	Dedicated CNC Computer
Motor Brand	Sanyo/Inovance/Matsushita	Sanyo/Inovance/Matsushita	Sanyo/Inovance/Matsushita
Max Wire Feed	10000.0mm	10000.0mm	10000.0mm
Min Wire Feed	0.01mm	0.01mm	0.01mm
Max Wire Speed	>60m/min	>60m/min	>60m/min
Wire Feed Length	unlimited	unlimited	unlimited
Power	3phase, 380V	3phase, 380V	3phase, 380V
Air Pressure	5-6KG/CM²	5-6KG/CM²	5-6KG/CM²
Probe	2	2	2
Machine Size	L2900W1130H1650MM	L2900W1130H1650MM	L2900W1130H1650MM

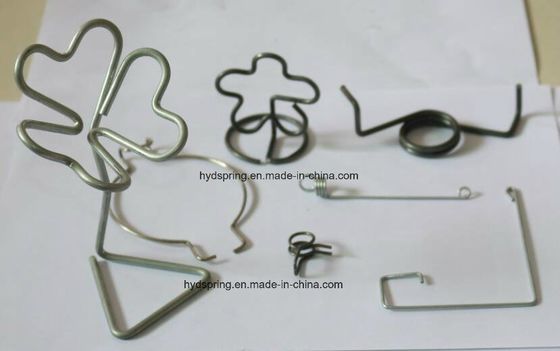

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
