High-Precision 9-Axis 3D Rotary Wire Bending Machine 3.0-10.0mm Range for Automotive Industry Automatic Motor Core for Vehicle

商品の詳細:

起源の場所:	広東省、中国
ブランド名:	HYD

お支払配送条件:

最小注文数量:	1

詳細製品概要

重さ:	2800 kg	電圧:	380V
力:	12 kW	ワイヤーサイズ:	3.0-10.0mmTS≤500N
サーボモーター:	10軸	制御システム:	専用のCNCコンピューター
最高ワイヤー供給:	10000.0mm	最小ワイヤーフィード:	0.01mm
最高ワイヤー速度:	>70m/min	ワイヤフード長さ:	無制限
空気圧:	5-6kg/cmの²	調査:	2
機械のサイズ:	長さ3800幅1100高さ1680MM	モーターブランド:	Sanyo/Yaskawa
電源:	三相380V
ハイライト:	9-axis CNC spring bending machine , 3D rotary wire bending machine for automotive , automatic motor core wire bender

High-Precision 9-Axis 3D Rotary Wire Bending Machine (3.0-10.0mm Range)

Designed for Automotive Industry Automatic Motor Core Applications

Technical Specifications

Feature	HYD-WR9A-100	HYD-WR10A-100
Wire Size	φ3.0-φ10.0mm TS≤500N	φ3.0-φ10.0mm TS≤500N
Servo Motors	9 axes	8 axes
Control System	Dedicated CNC Computer	Dedicated CNC Computer
Motor Brand	Sanyo/Yaskawa	Sanyo/Yaskawa
Max Wire Feed	10000.0mm	10000.0mm
Min Wire Feed	0.01mm	0.01mm
Max Wire Speed	>70m/min	70m/min
Wire Feed Length	unlimited	unlimited
Power	3phase,380V	3phase,380V
Air Pressure	5-6KG/CM²	5-6KG/CM²
Probe	2	2
Machine Size	L3800W1100H1680MM	L3800W1100H1680MM

Product Gallery

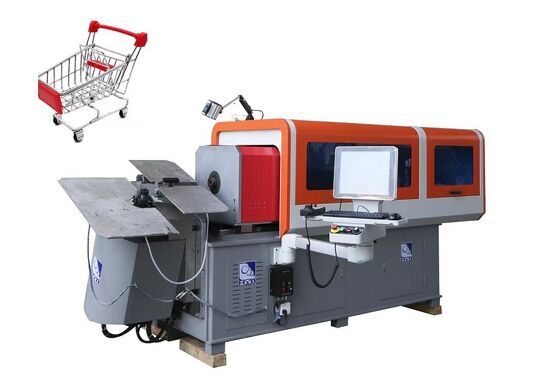

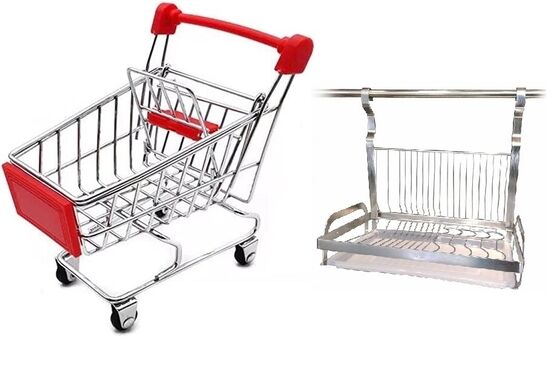

Application Scenarios

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
